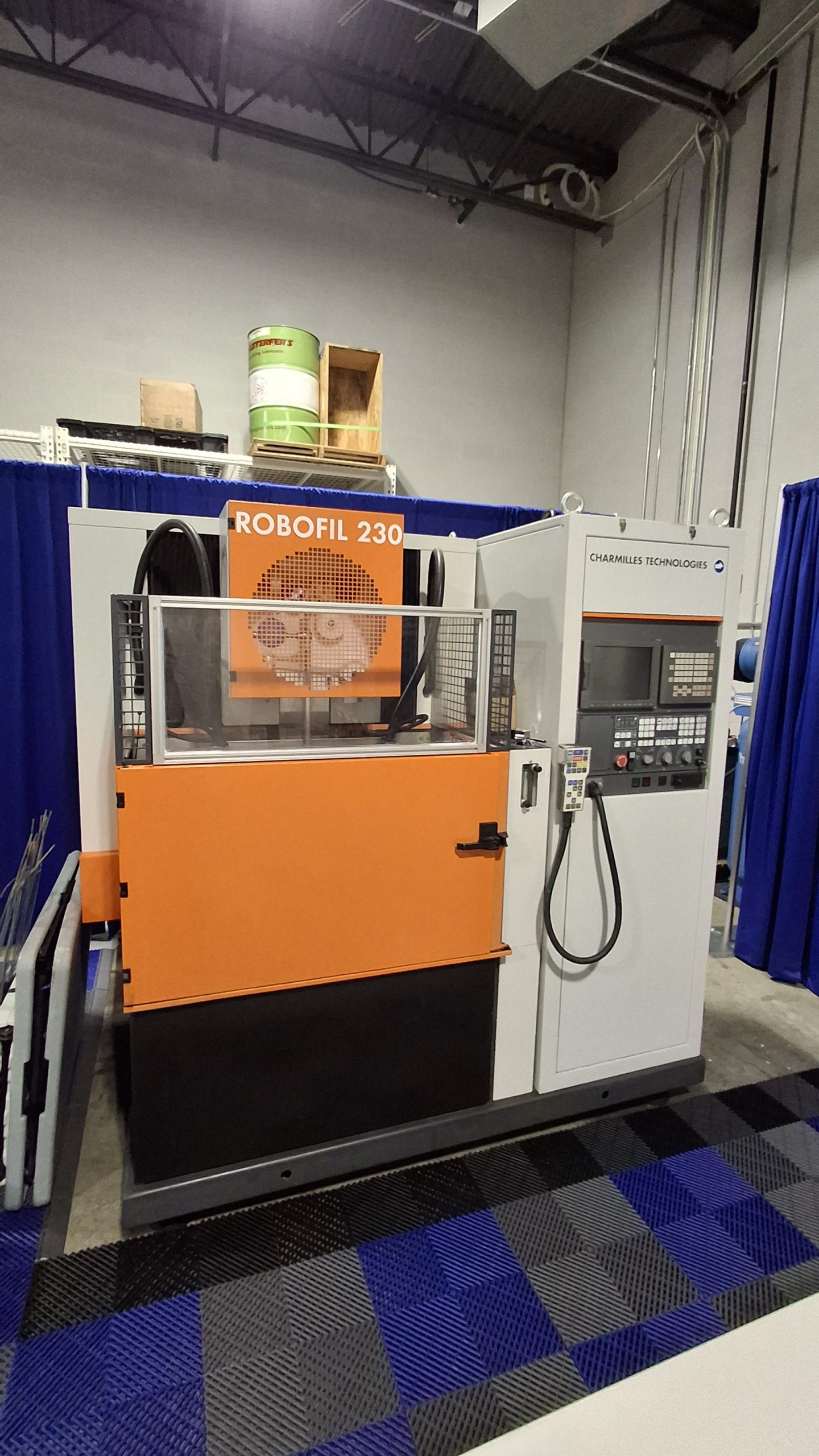

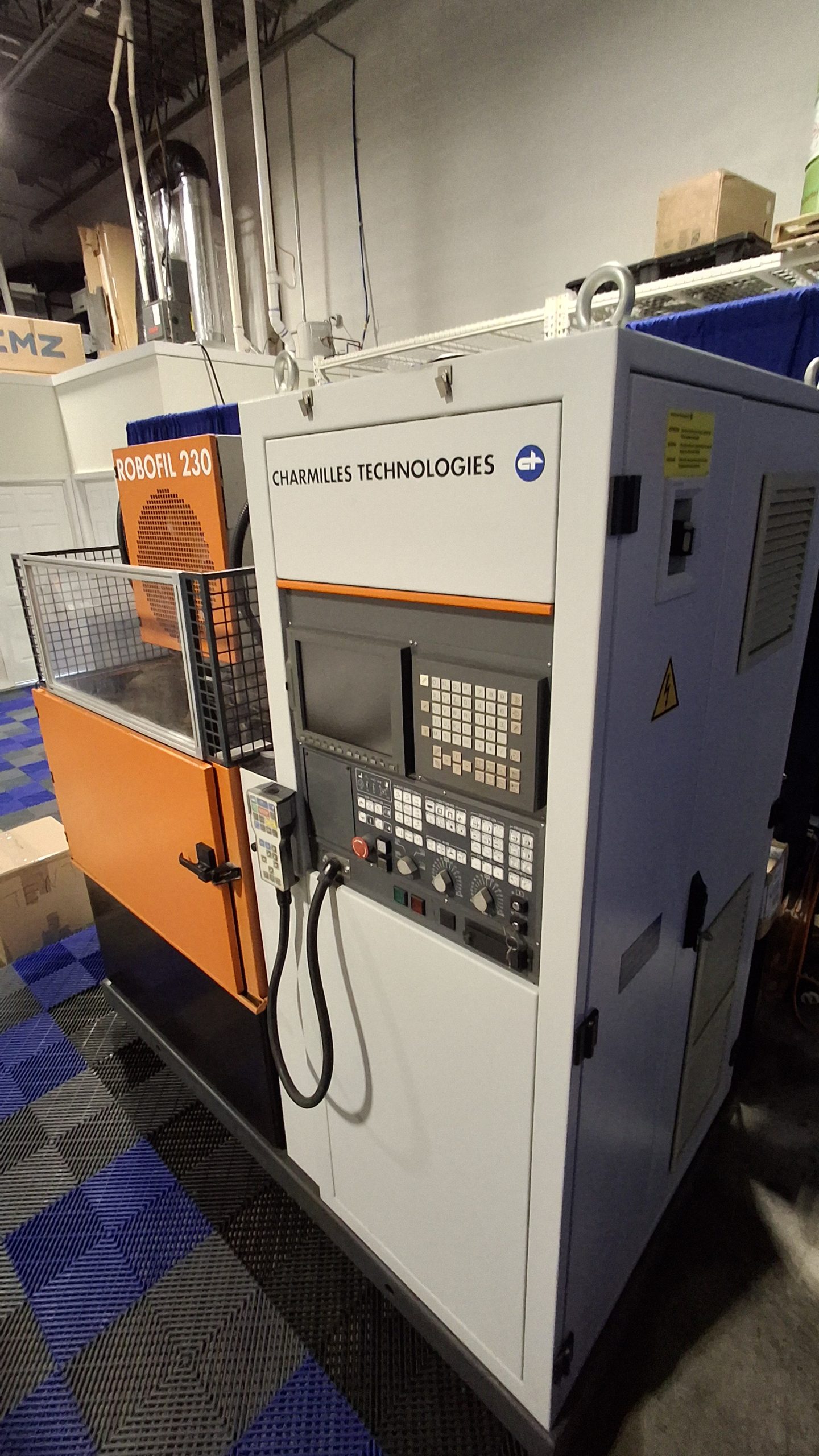

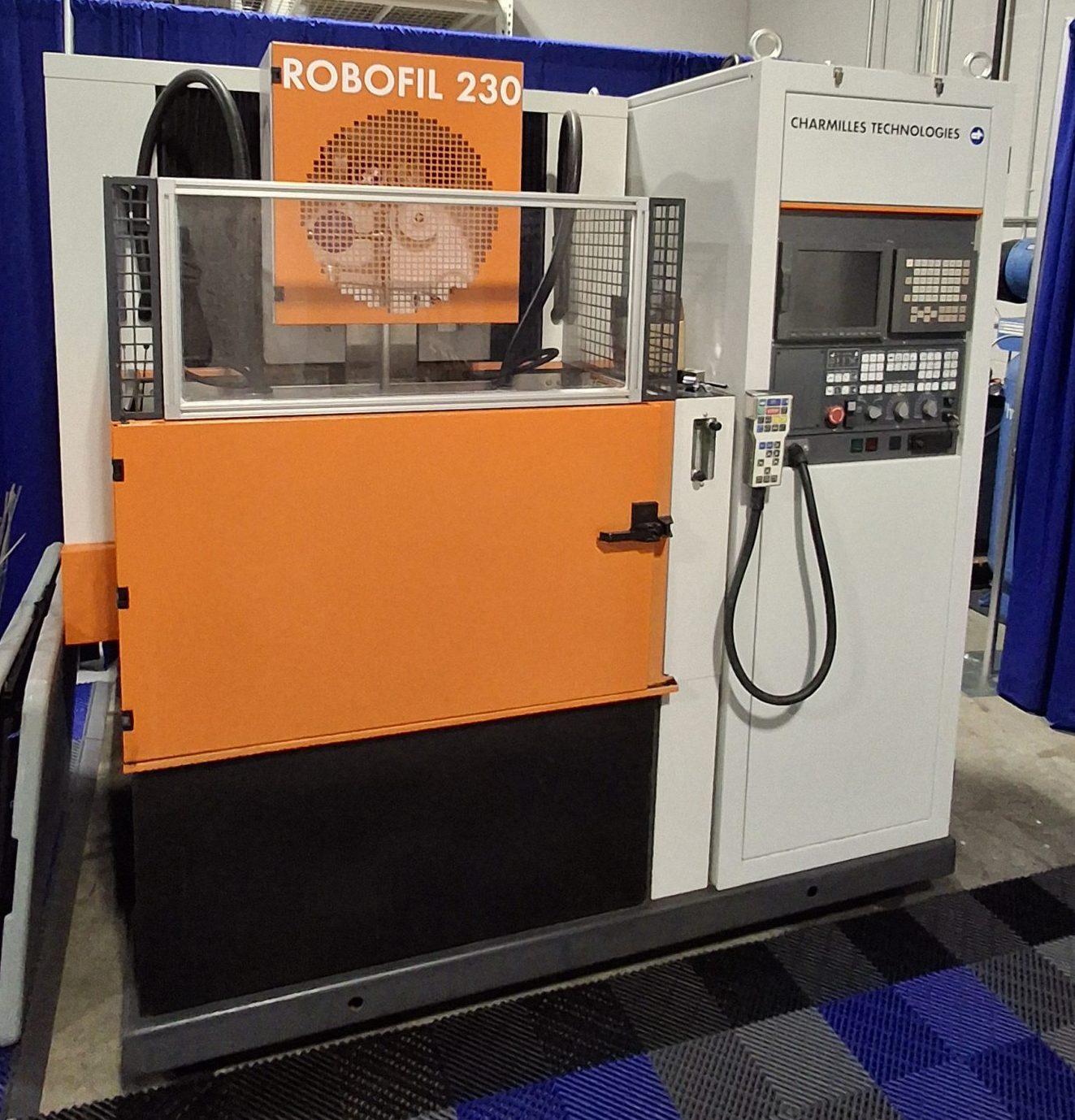

Charmilles ROBOFIL 230F Wire EDM for Sale
Price: Call us at (215) 672-8112 for a quote
Brand: Charmilles ROBOFIL 230F
Serial Number: 920115
Condition: Good
Operating Condition: Good
Location: Pennsylvania
Gallery:
MACHINE SPECS
Looking for a used wire EDM machine for precision cutting, complex contours, or tapered profiles? The Charmilles ROBOFIL 230F is built around the capabilities that make wire EDM valuable for demanding machining applications.
With five-axis capability, U/V-axis control for taper machining, and glass-scale feedback, the ROBOFIL 230F was built to give operators control over complex cutting operations.
For shops working with hardened materials, intricate profiles, tooling, or die components, the ROBOFIL 230F offers a dedicated wire EDM platform worth considering.
Why Consider the Charmilles ROBOFIL 230F?
The ROBOFIL 230F brings several capabilities together:
- Five-axis machining capability for complex cutting operations
- U/V-axis control for tapered profiles and angled cuts
- Glass-scale feedback designed to support accurate axis positioning
- Integrated Collision Protection (ICP) to help protect the machine
- Automatic wire threading for supported unattended rethreading operations
- Submerged machining capability for wire EDM applications
The combination of contour-cutting capability and taper machining makes this model relevant to shops producing dies, tooling, and precision components.
| Specification | Value |
|---|---|
| Manufacturer | Charmilles |
| Model | ROBOFIL 230F |
| Year | 2000 |
| Serial Number | 920115 |
| Machine Type | CNC Wire EDM |
| X-Axis Travel | 350 mm |
| Y-Axis Travel | 220 mm |
| Z-Axis Travel | 220 mm |
| U-Axis Travel | 350 mm |
| V-Axis Travel | 220 mm |
| Maximum Taper Angle | Up to 30° |
| Maximum Workpiece Dimensions | 800 × 550 × 220 mm |
| Maximum Workpiece Weight | 500 kg |
| Wire Diameter | 0.1–0.3 mm |
| Automatic Wire Threading | Yes |
| Machining Method | Wire Electrical Discharge Machining |

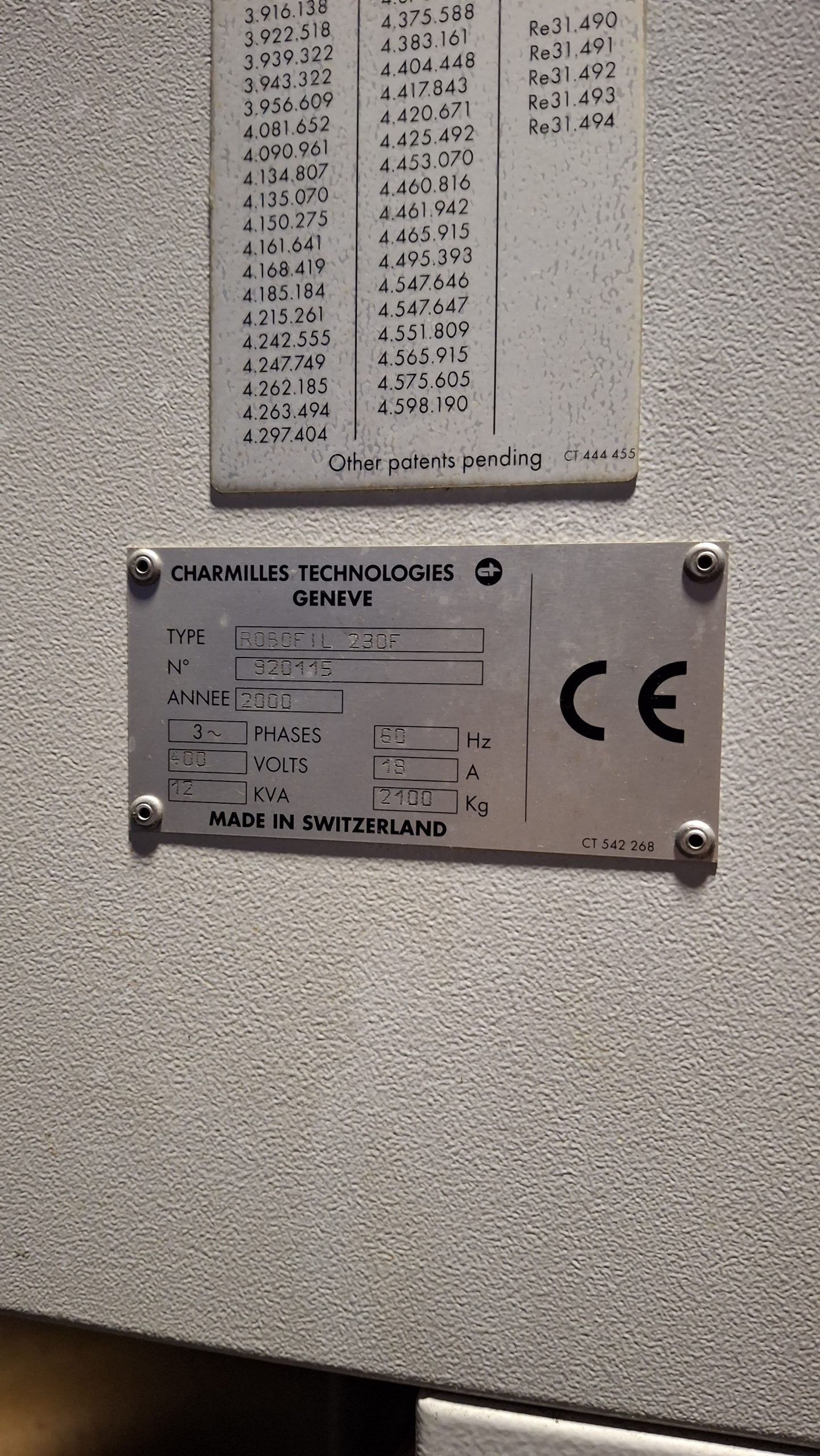

| Electrical Supply | 3-phase |
| Voltage | 400 V |
| Frequency | 60 Hz |
| Connected Load | 12 kVA |
| Current | 18 A |
| Machine Weight | ~ 2,100 kg |
Built for Precision Wire EDM Work
The Charmilles ROBOFIL 230F is worth considering for applications such as:
- Tool and die manufacturing
- Precision tooling and hardened-steel components
- Complex contour cutting
- Tapered profiles and angled cuts
- Intricate conductive components
- General wire EDM applications
Its U/V-axis capability expands the range of profiles that can be cut, while the machine’s positioning system and collision protection features support controlled machining operations.
If you have any questions, feel free to reach out to us at (215) 672-8112 or leave us a message by using the links below.
Note: Specifications are subject to verification. Machine condition, installed control, included accessories, and operating status should be confirmed before purchase. Machine sold as-is, where-is; unless otherwise noted.
