SMEC Samsung MCV-50 Vertical Machining Center for Sale

MACHINE SPECS

Need a vertical machining center that can handle real production work without overcomplicating things? The SMEC MCV-50 was designed for exactly that.

Rigid construction.
Fast rapids.
12,000 RPM spindle.

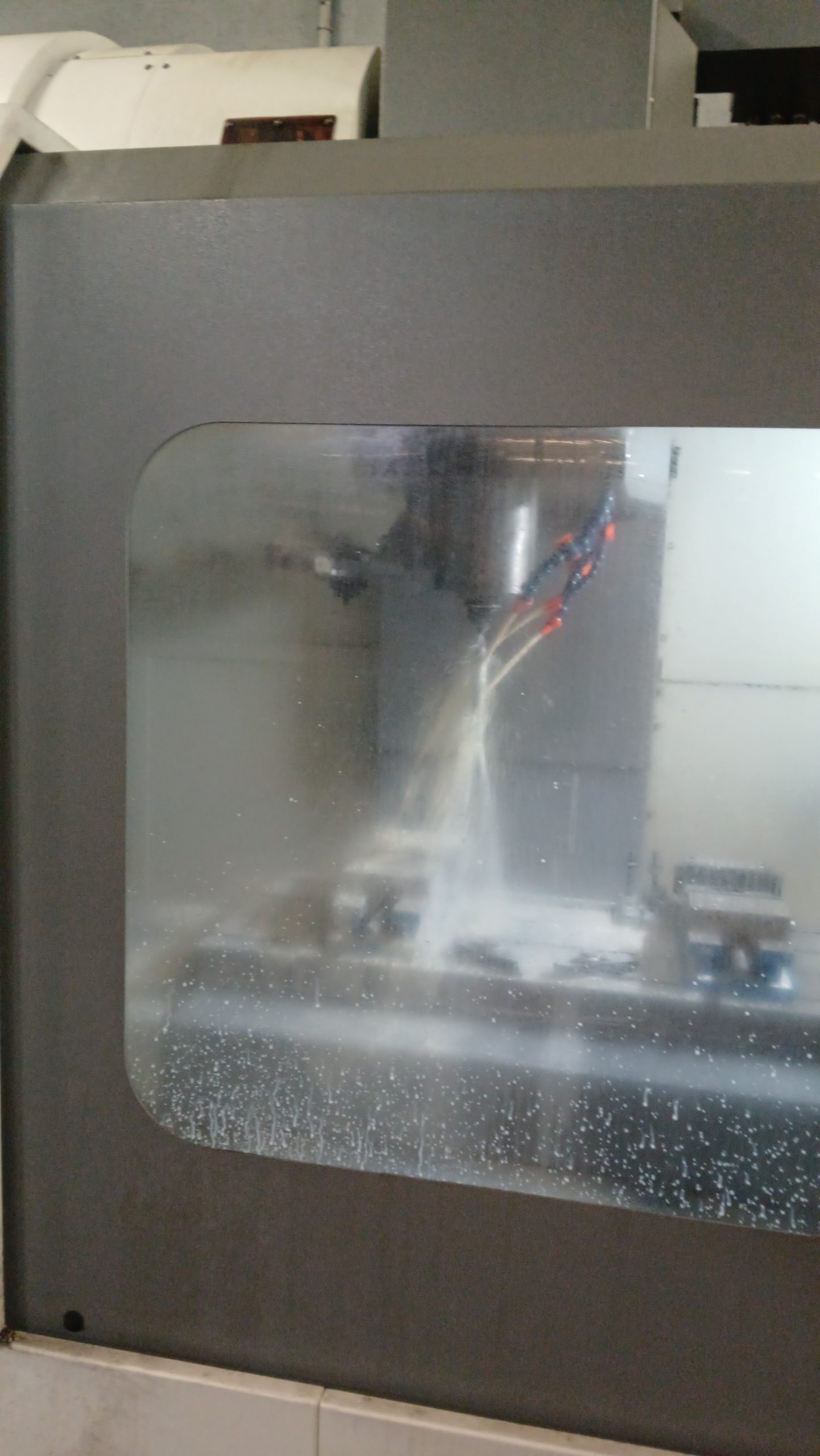

Through-spindle coolant.

This machine was designed to move parts efficiently while maintaining accuracy and reliability over long production runs.

At Northeast Precision Machinery, we help manufacturers find machines that actually fit the work they do. The speed, rigidity, and tooling capacity built into the SMEC MCV-50 allow shops to tackle a broad range of machining applications with confidence.

Why Choose the SMEC MCV-50?

The MCV-50 combines high-speed machining capability with a heavy-duty machine structure designed for stability under load.

Wide linear guideways, large diameter ballscrews, and a rigid Meehanite cast iron construction help reduce vibration and maintain accuracy during aggressive cutting conditions.

Whether you’re roughing material, running production parts, or handling tighter tolerance work, the MCV-50 is built to keep chips moving.

Specification	Value
X-Axis Travel	41.33″
Y-Axis Travel	20.47″
Z-Axis Travel	20.47″
Table Size	47.3″ x 20.10″
Table Capacity	1,764 lbs
Spindle Speed	12,000 RPM
Spindle Motor	20 HP
Spindle Taper	CAT-40
Spindle Torque	78.2 ft-lbs
Tool Capacity	30 ATC
Tool Change Time	1.8 sec
Rapid Traverse	1417 / 1417 / 1181 IPM
Feed Rate	590 IPM
Control	Fanuc 0i-MD
Coolant Through Spindle	290 PSI
Guideway Type	Heavy Duty Linear Guideways
Machine Weight	13,665 lbs

Key Features of the SMEC MCV-50:

• 12,000 RPM spindle with spindle cooling unit
• 290 PSI through-spindle coolant system
• 30-tool double arm automatic tool changer
• Heavy-duty linear guideways

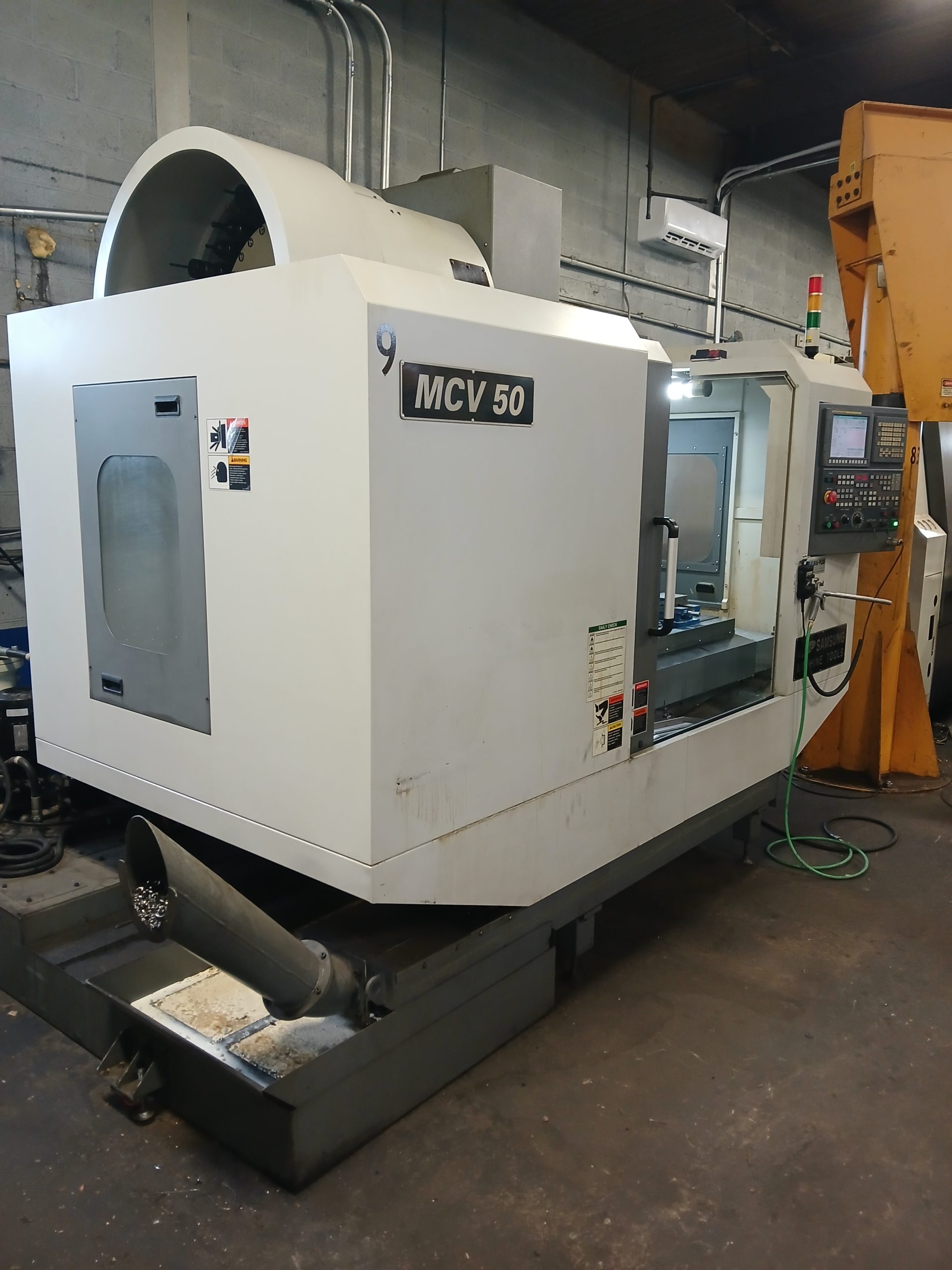

• Lift-up chip auger and conveyor
• Rigid tapping capability
• Full enclosure splash guarding
• High precision pre-tensioned ballscrews
• Portable manual pulse generator

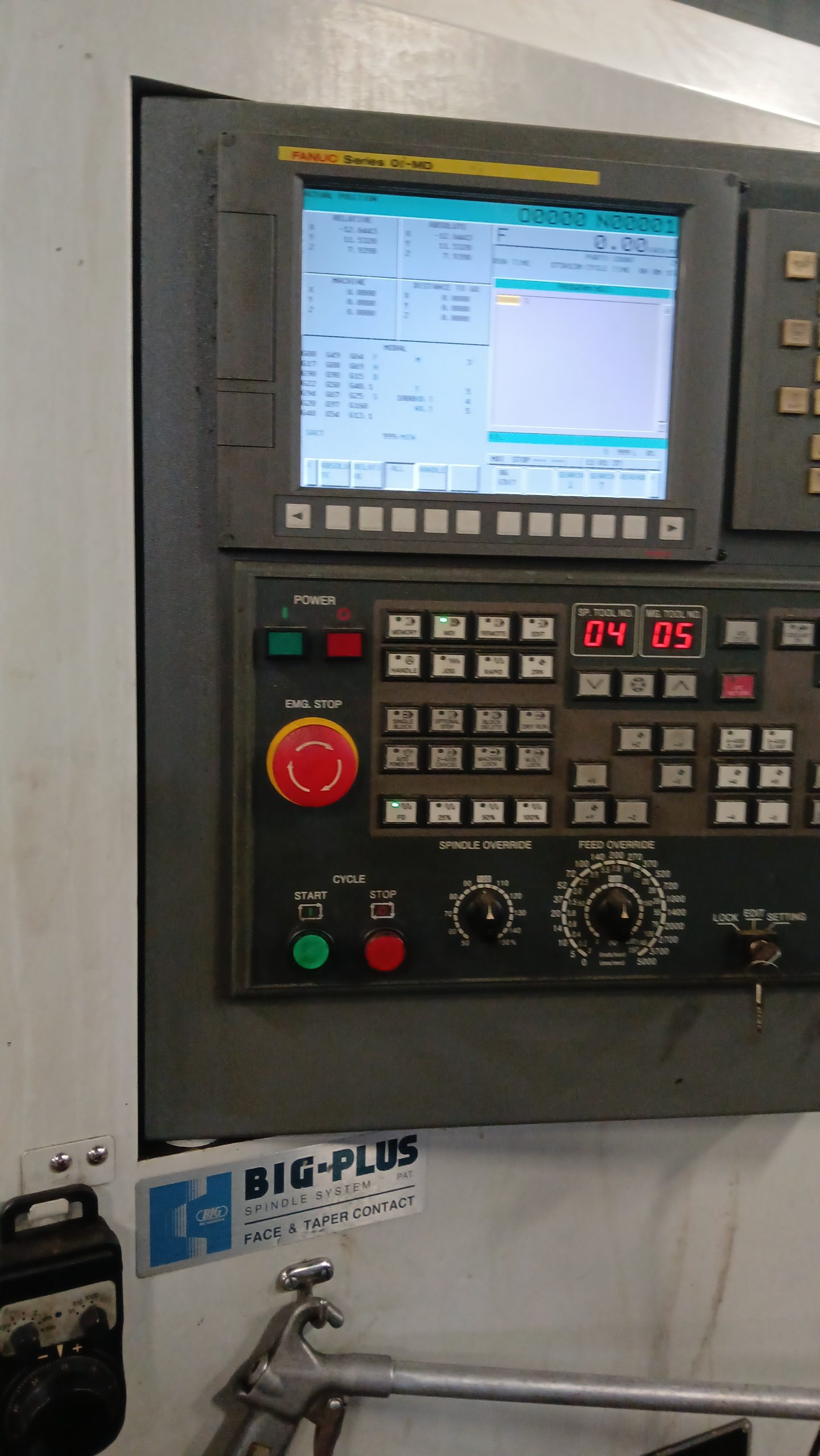

• Fanuc 0i-MD CNC control
• Coolant system with separate coolant tank

Built for Production Machining

The Samsung MCV-50 is a strong fit for:

• General machining
• Aerospace work
• Production machining
• Tool & die shops
• Medical manufacturing
• Heavy material removal applications
• Shops looking for reliable CAT-40 machining capability

This machine gives shops a solid balance of spindle speed, rigidity, and tooling flexibility without stepping into a larger, more expensive platform.

NOTE: Specifications are subject to verification. Machine sold as-is, where-is.
